What is a Conduit?

Understanding Conduit

Conduit is a protective raceway for electrical conductors. It creates a controlled path between a breaker panel, junction box, switch, receptacle, or equipment. The raceway protects wire insulation from impact, abrasion, moisture, sunlight, chemicals, and heat. It also keeps conductors organized in buildings with exposed wiring or difficult routing.

Related glossary terms: EMT Conduit, Plastic Conduit, Wire Gauge.

Common materials include EMT conduit, rigid metal conduit, intermediate metal conduit, flexible metal conduit, and plastic conduit. Plastic conduit is often called PVC conduit. Each type has limits for strength, corrosion resistance, bending, burial, and wet locations. Conduit doesn't replace conductor insulation, overcurrent protection, or a grounding path. The complete wiring system needs all these parts to work together.

How Conduit Works, Is Measured, or Is Used?

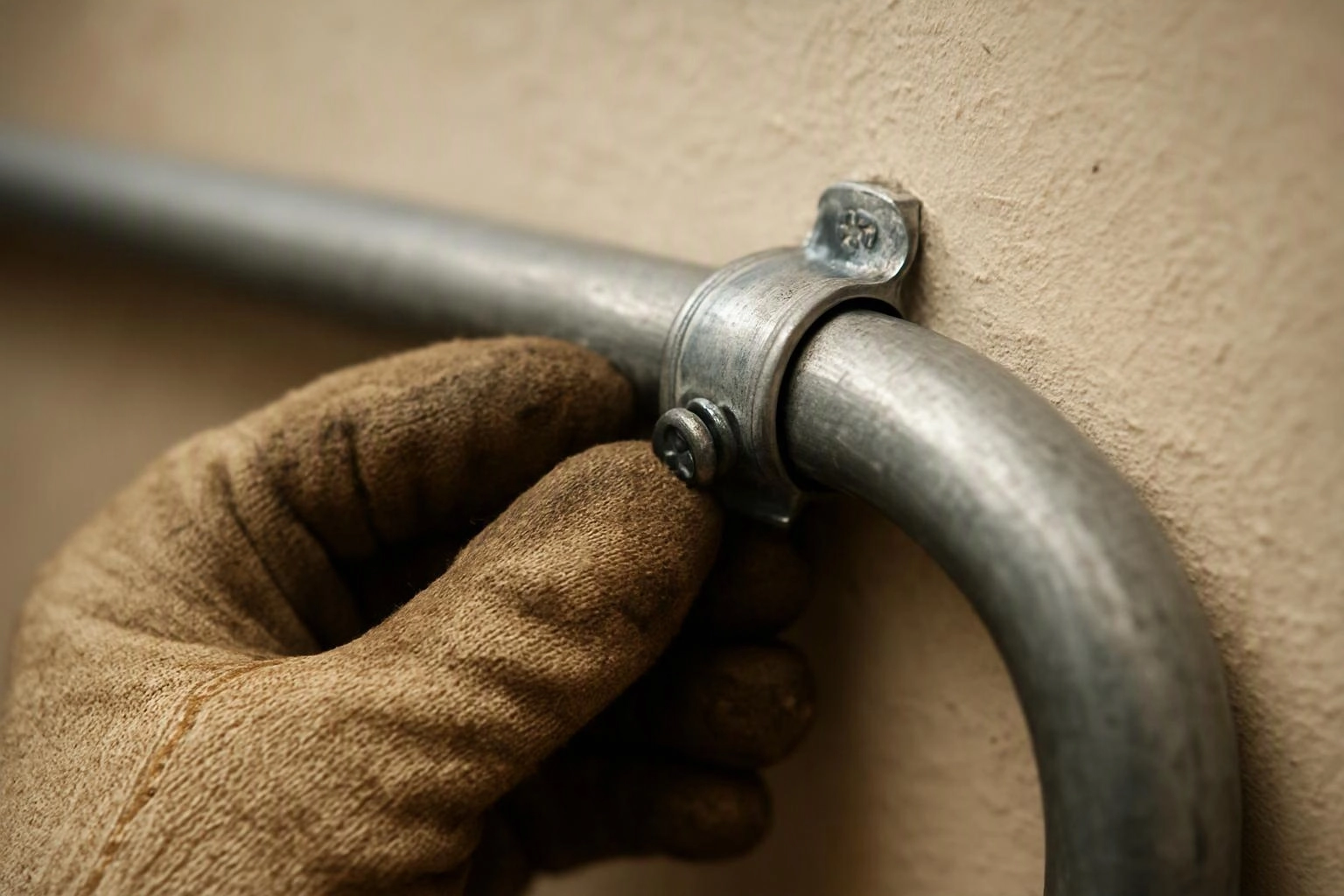

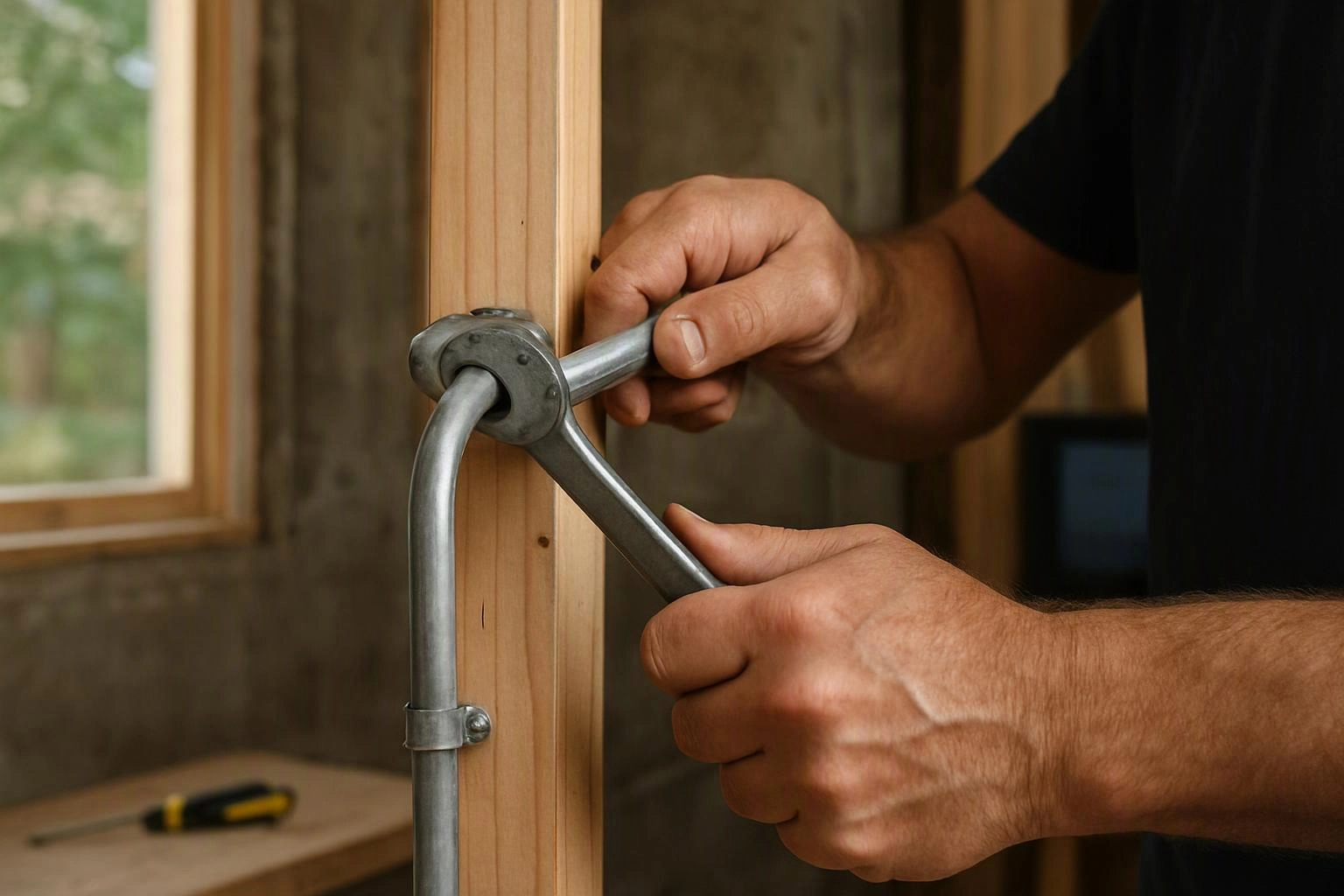

Conduit works by enclosing conductors inside a continuous raceway. The raceway uses connected sections and fittings. Installers cut and bend the raceway. They join sections with couplings and secure the assembly to building surfaces. Installers then pull conductors through the finished path. They use tools and methods that reduce insulation damage. Pull boxes or junction boxes may be added for long routes or several bends.

Raceway selection starts with the location and conductors. Installers check the wire gauge, conductor count, insulation type, ambient conditions, and bend space. They check these items before choosing a trade size. The raceway needs enough internal area for the conductors. It must also follow code limits for fill and bends. Metal raceways may need bonding and grounding connections. PVC raceway needs a separate equipment grounding conductor.

• Choose a raceway rated for dry, damp, wet, indoor, outdoor, buried, or hazardous conditions.
• Use fittings listed for the selected raceway type and location.
• Support the raceway at the intervals required by the applicable electrical code.
• Protect open ends with bushings or fittings that prevent conductor damage.

Why Conduit Matters?

Conduit can extend the useful life of a wiring system. It shields conductors from common physical threats. A raceway also makes future inspection, conductor replacement, and circuit changes easier. This works better than wiring hidden without an accessible path. Metal conduit can provide mechanical protection in garages, workshops, commercial spaces, and exposed service areas.

Correct installation affects safety and system speed. A damaged fitting can expose sharp edges. An overfilled raceway can make conductor installation difficult. It can also damage insulation. Poor bonding can leave metal parts at an unsafe voltage during a fault. Proper material selection, conductor sizing, support, and electrical grounding help the system work as intended.

When Conduit Matters Most?

Conduit becomes important when wiring faces impact, water, sunlight, pests, or construction activity. Outdoor equipment, unfinished basements, parking areas, workshops, industrial rooms, and masonry walls often need a raceway. This works better than an exposed cable assembly. Conduit also helps when a route must pass through concrete, across open ceilings, or along a surface. Future access may matter in these areas.

Conduit decisions affect project cost, installation time, and future repairs. Rigid metal systems may withstand more abuse. However, they require more labor and special bending. PVC can resist corrosion but doesn't provide a metal grounding path. During a remodel or electrical code correction, an installer should check the raceway material, conductor capacity, weather rating, box connections, support, and local permit needs. The installer should complete these checks before the circuit's energized.
